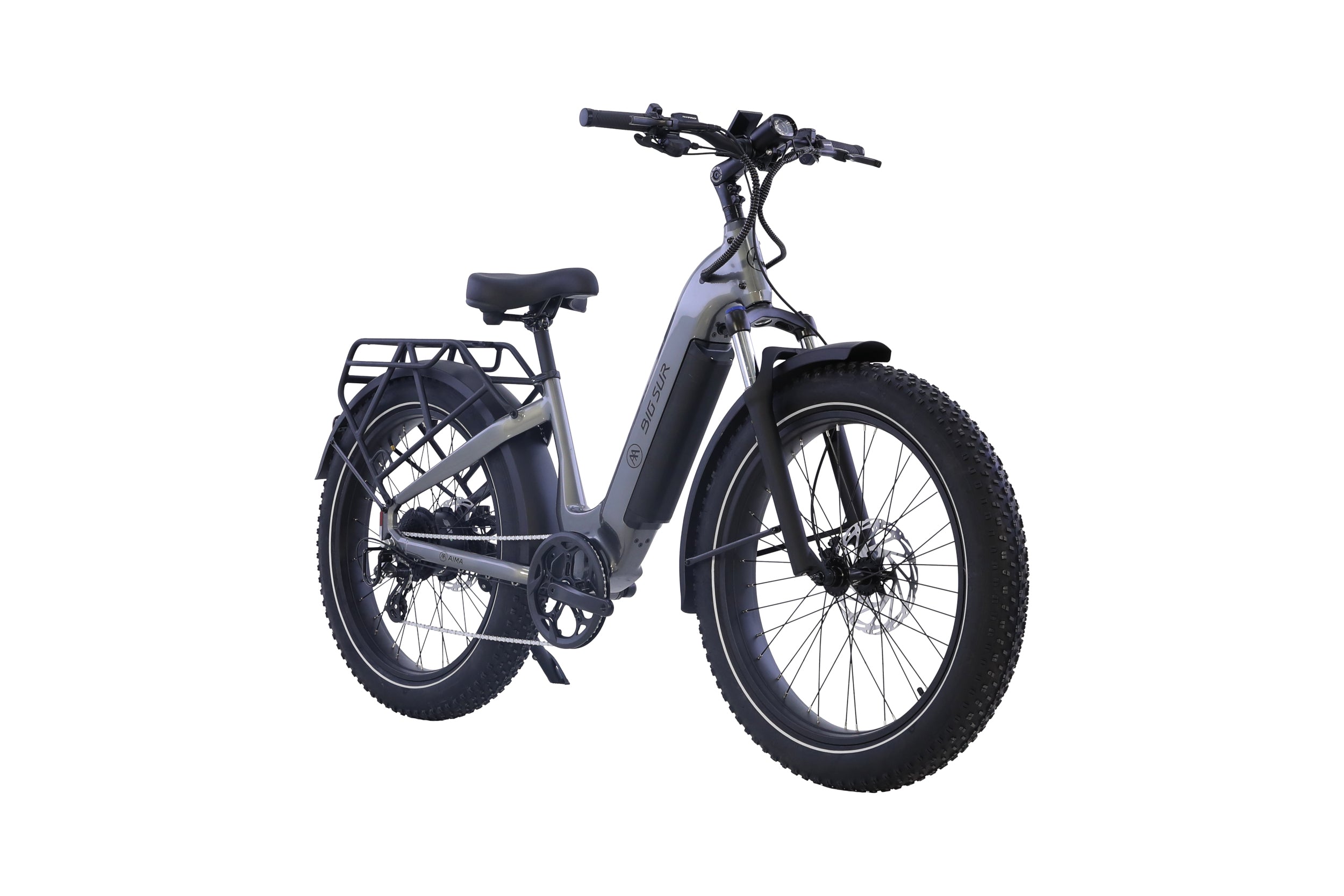

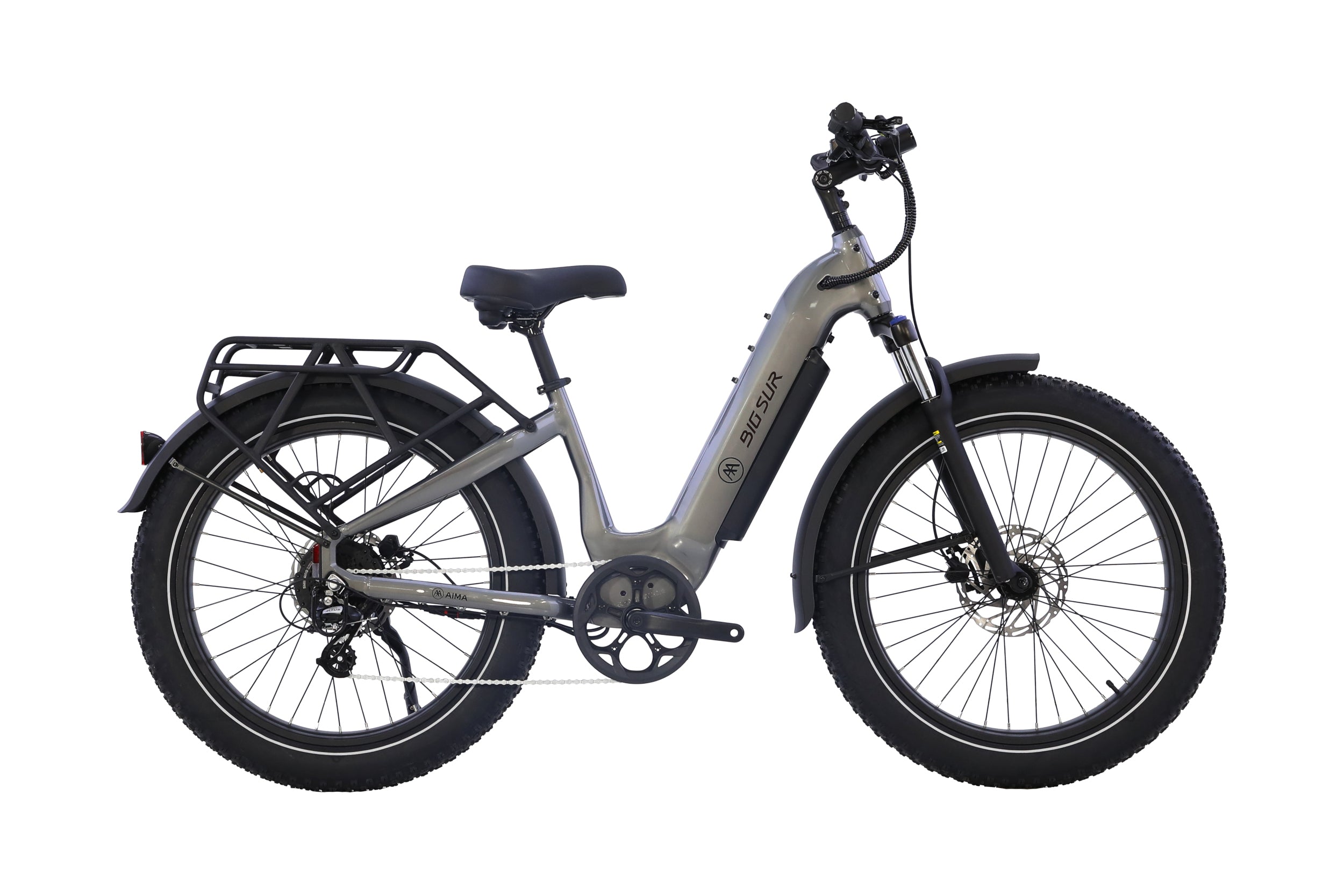

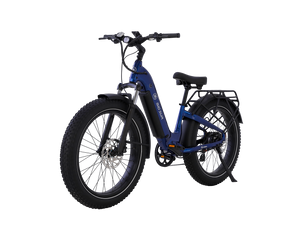

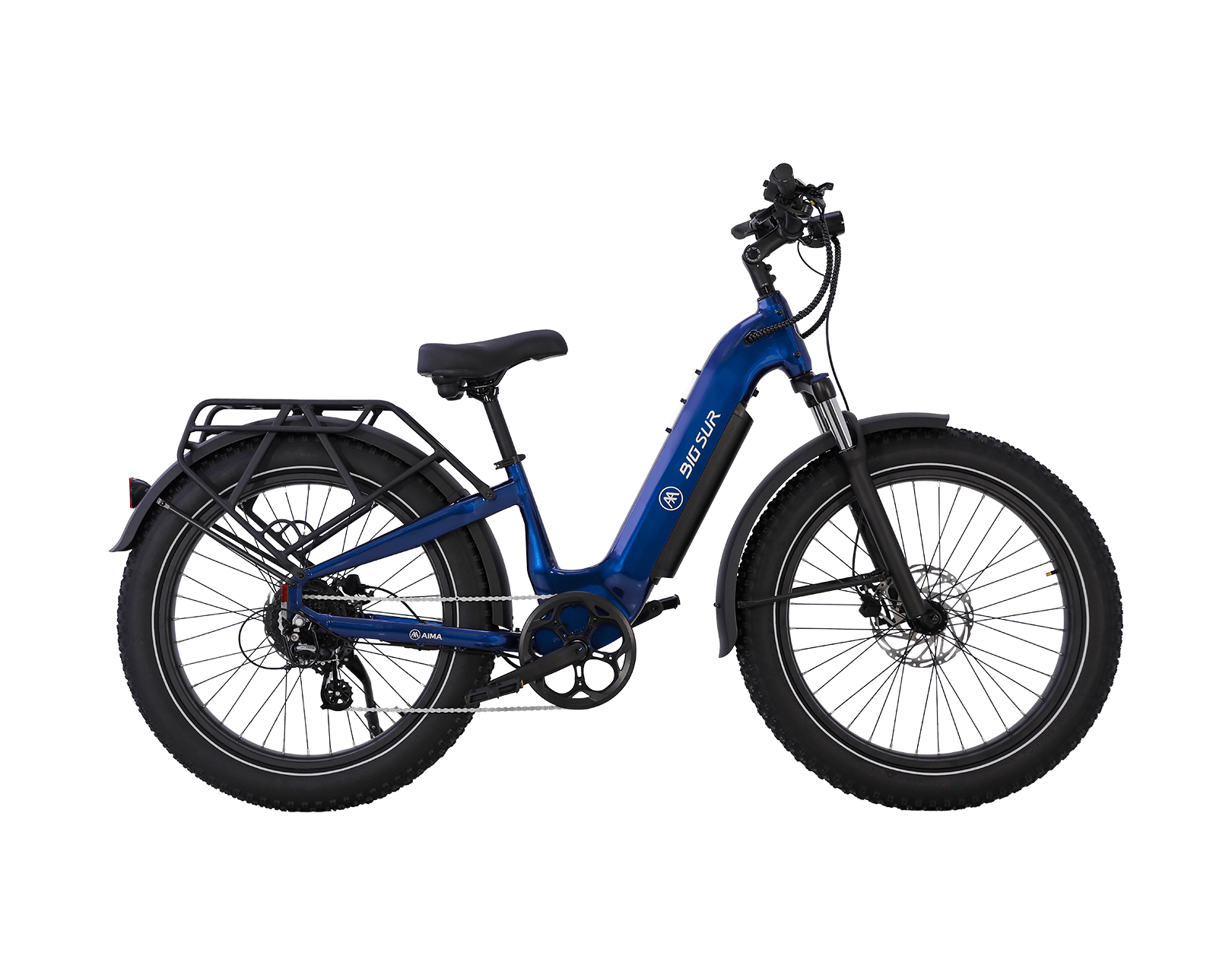

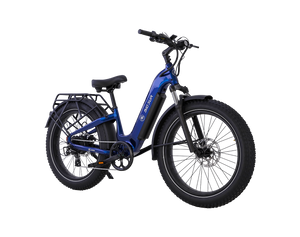

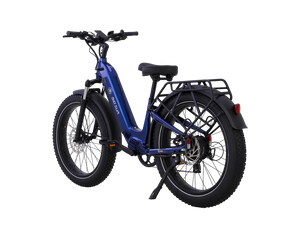

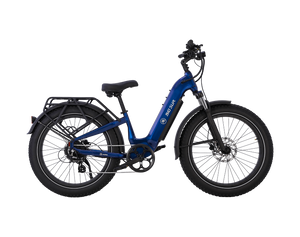

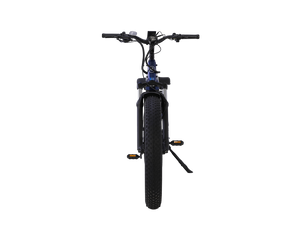

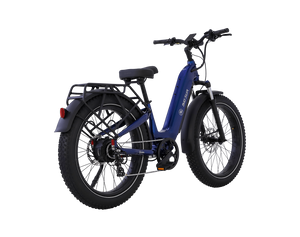

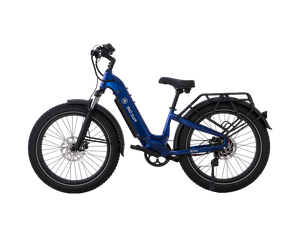

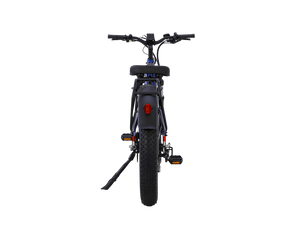

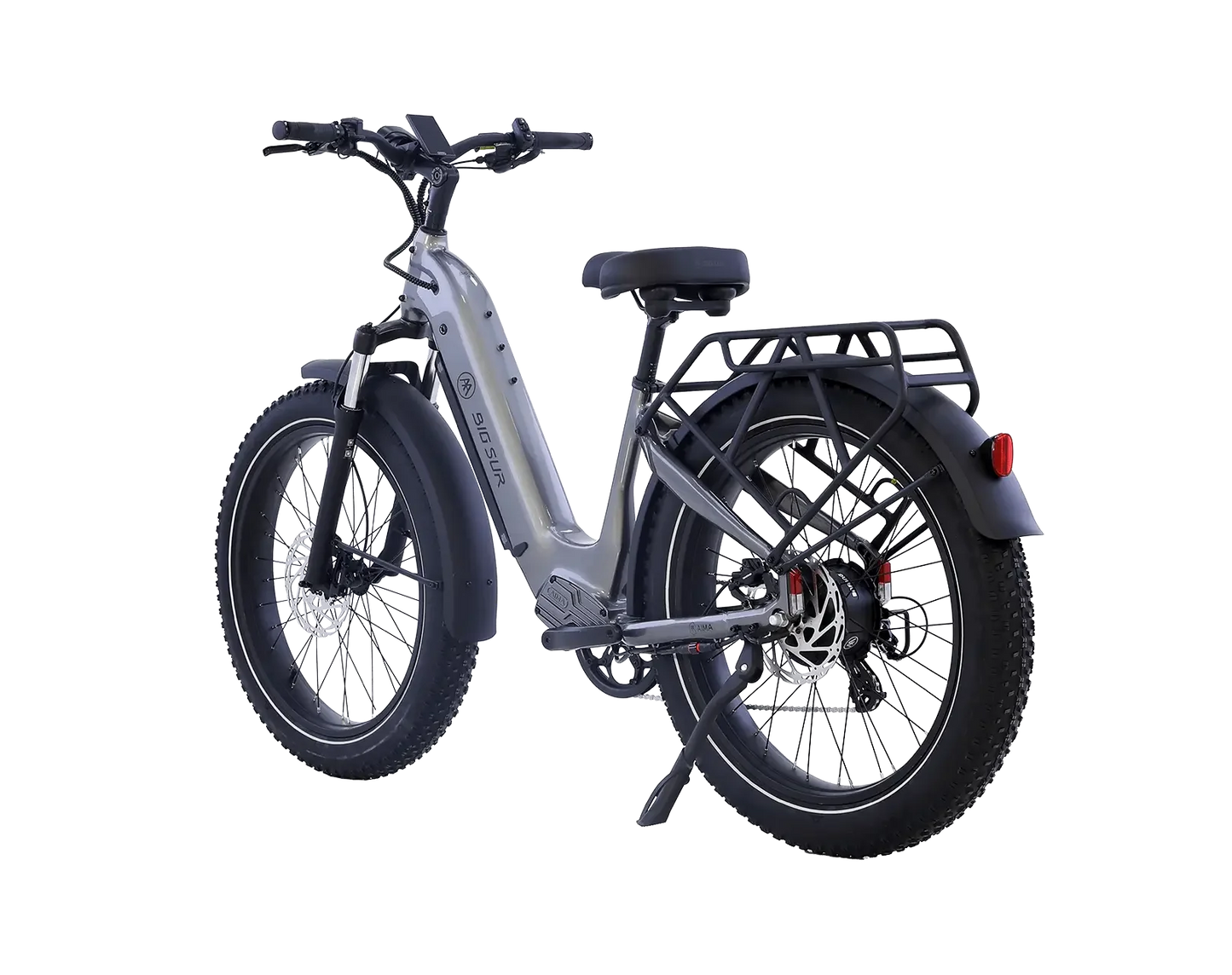

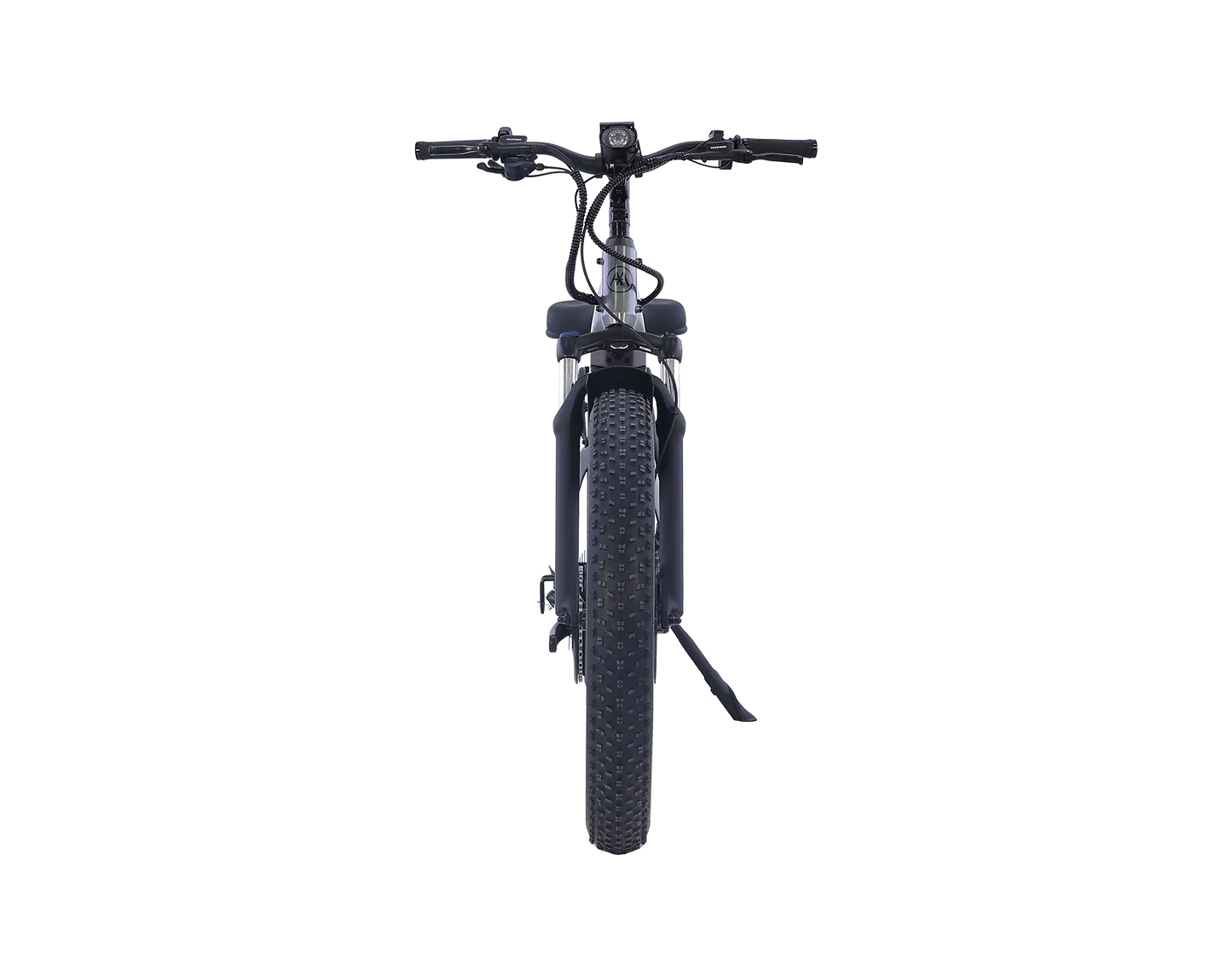

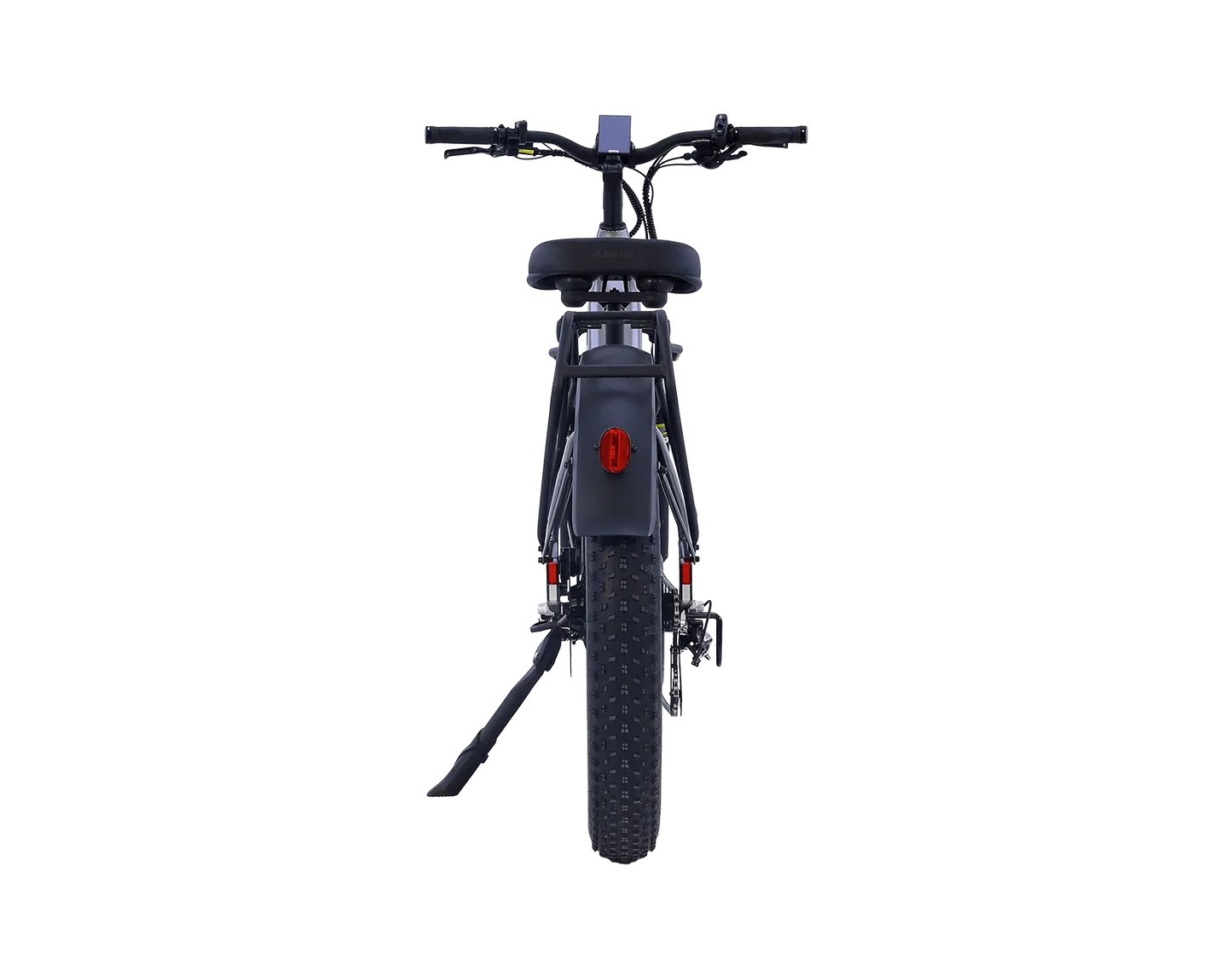

Big Sur 2.0 Ebike

MOTOR

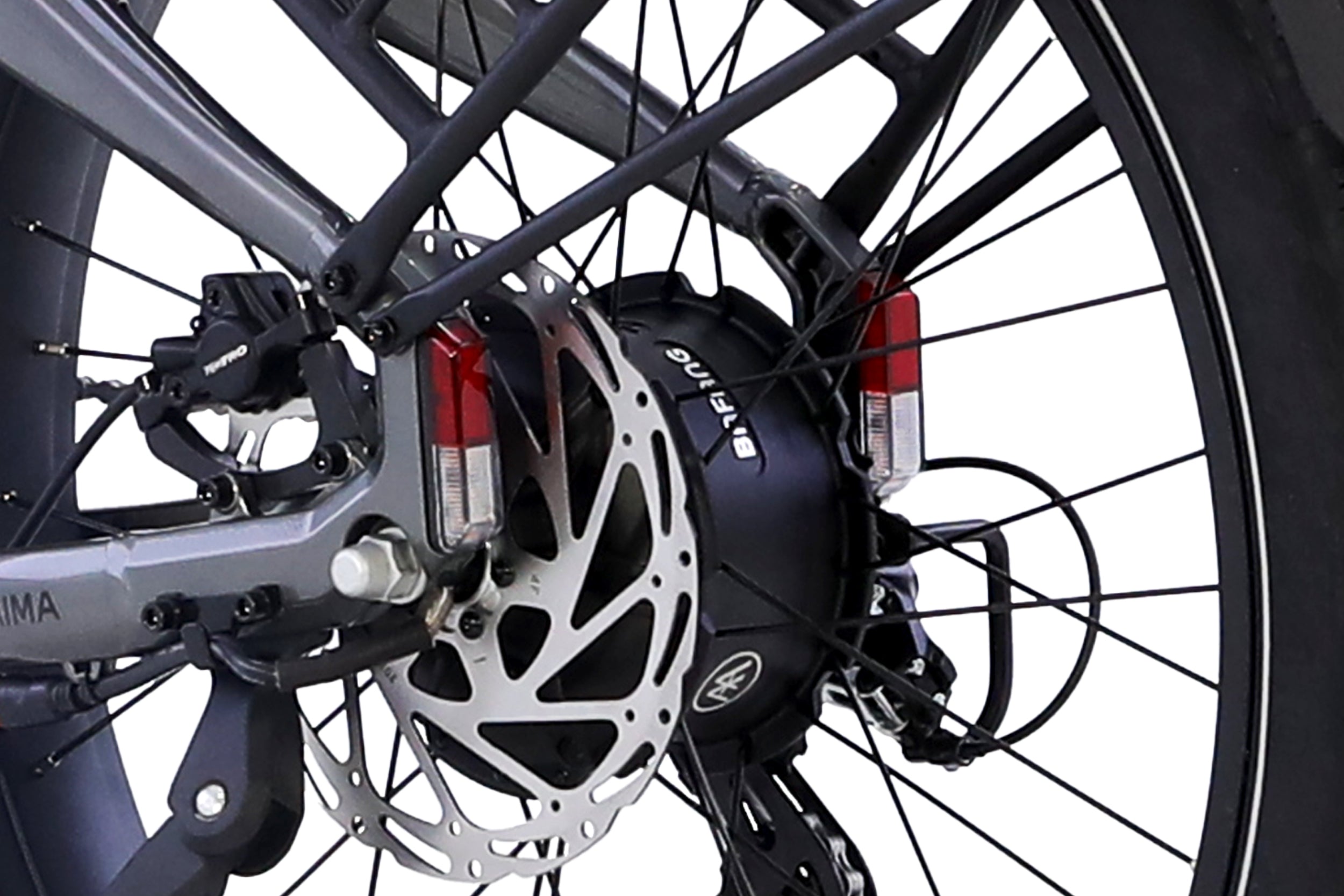

Rear Hub Motor, BAFANG, 750W

Peak Power: 1200W | Max Torque: 85Nm

THROTTLE

Throttle on Demand

DISPLAY

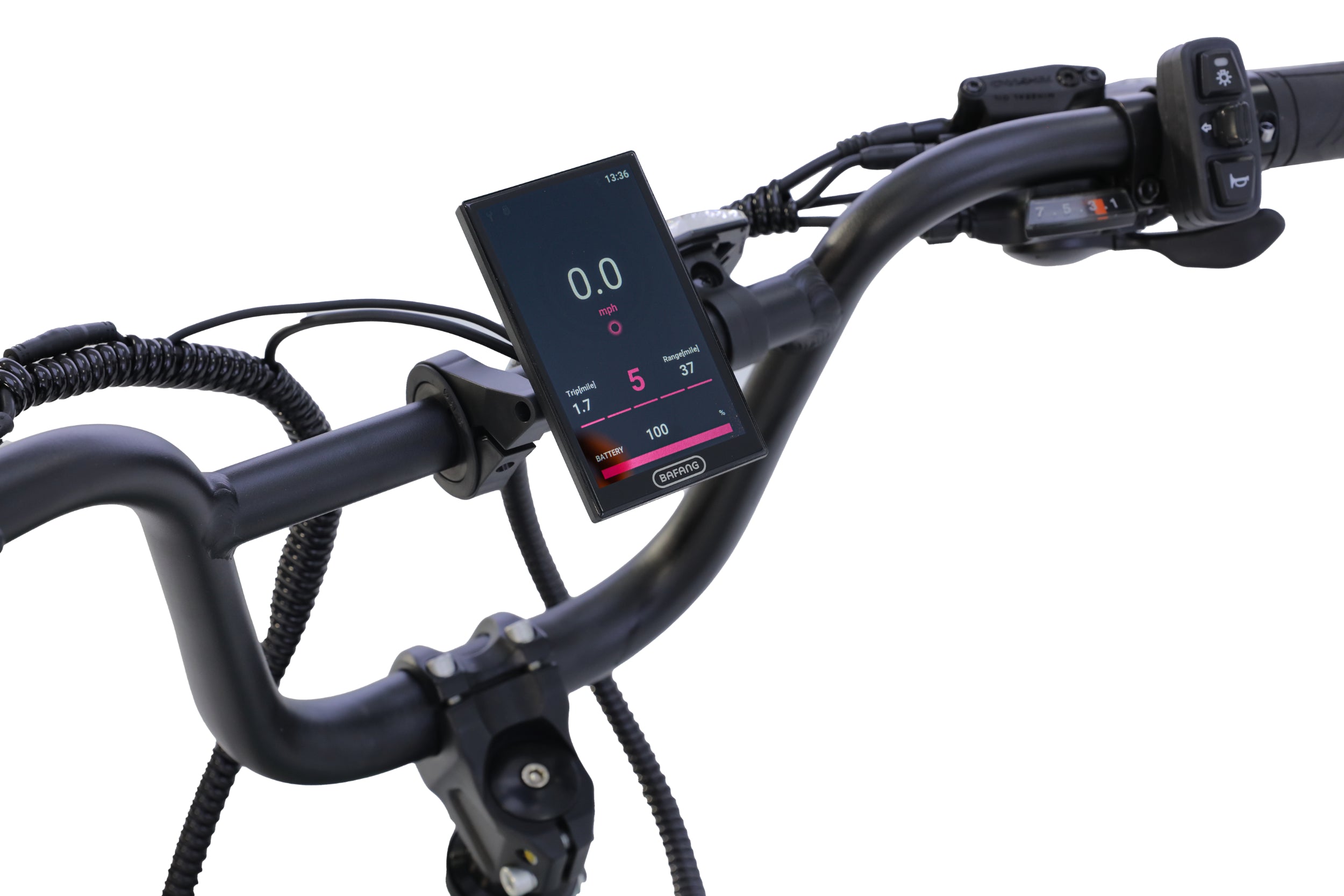

BAFANG E-system TFT DisplaySmart Function FindMy, Navigation, Calls, Notifications

CERTIFICATION

UL2849 Compliant

SPEED

20 MPH

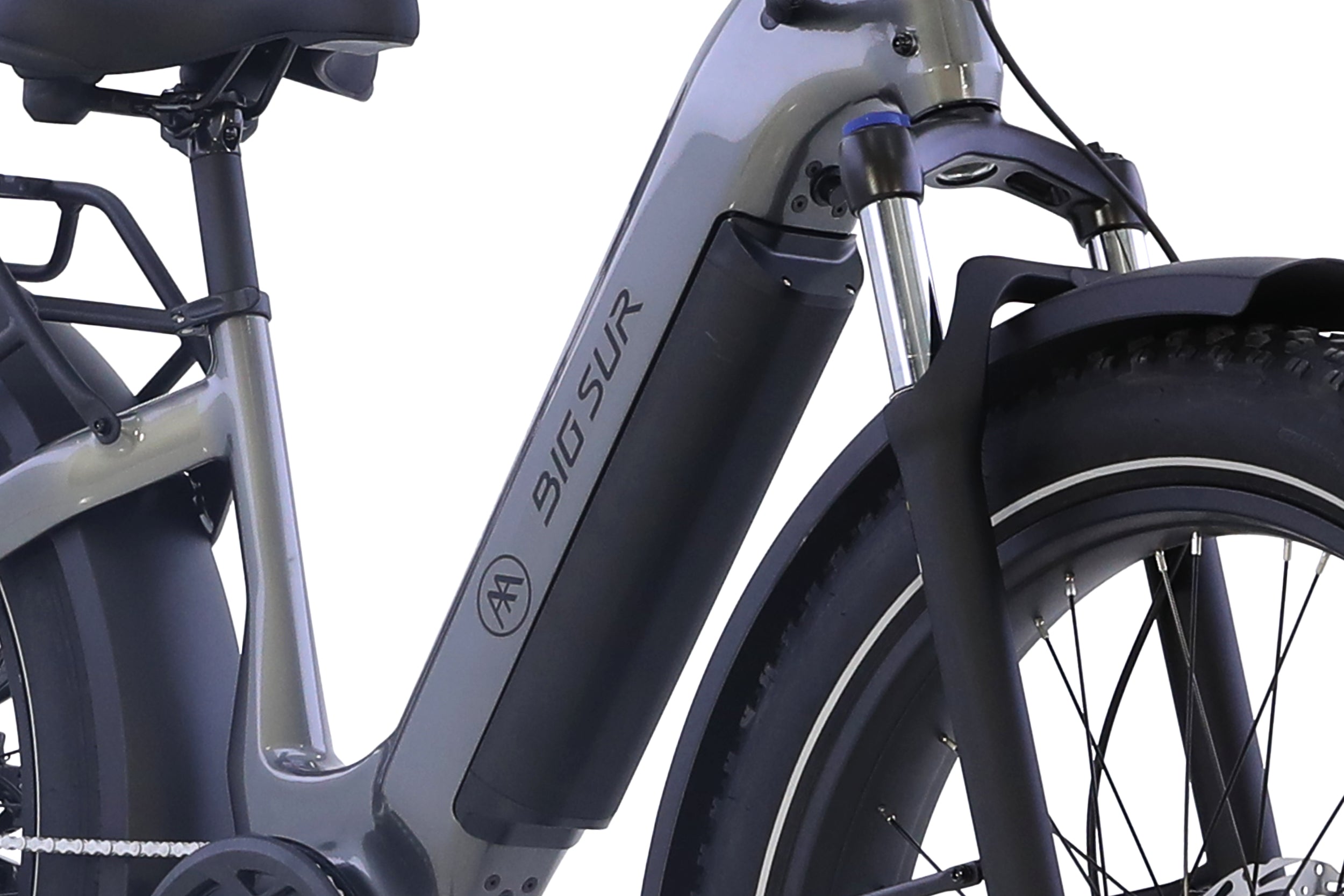

BATTERY

Removeable Internal Lithium-Ion, 48V, 20Ah (960Wh)

LIGHTING

Integrated Headlight, Tail Lights, and Turn Signals w/Horn

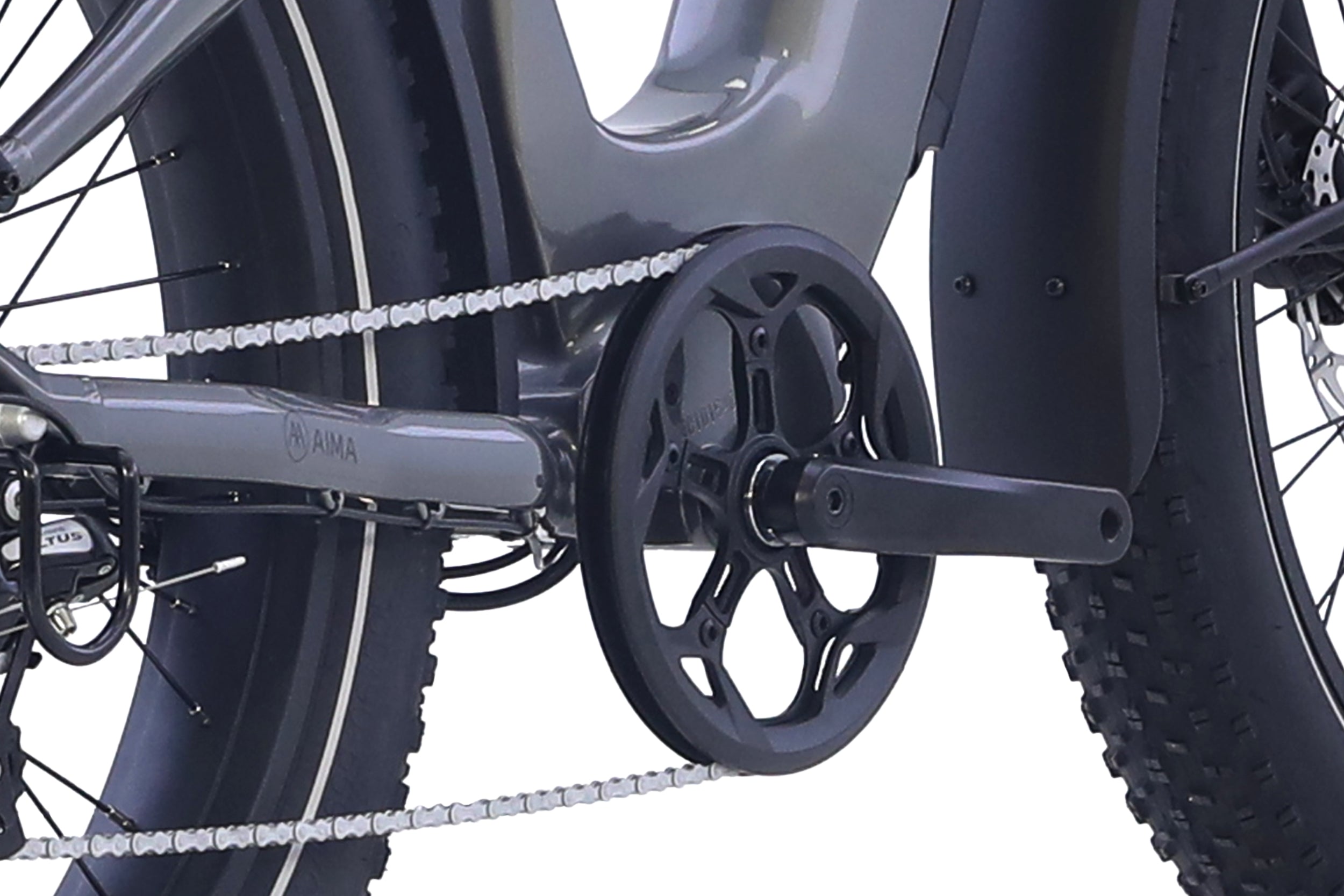

PEDAL SENSOR

Customizable w/Torque & Cadence Modes

PEDAL ASSIST

5 PAS Levels

CHARGER

48V, 3 Amp Fast Charger, 7-8 Hours to a Full Charge

RANGE

40-75 miles

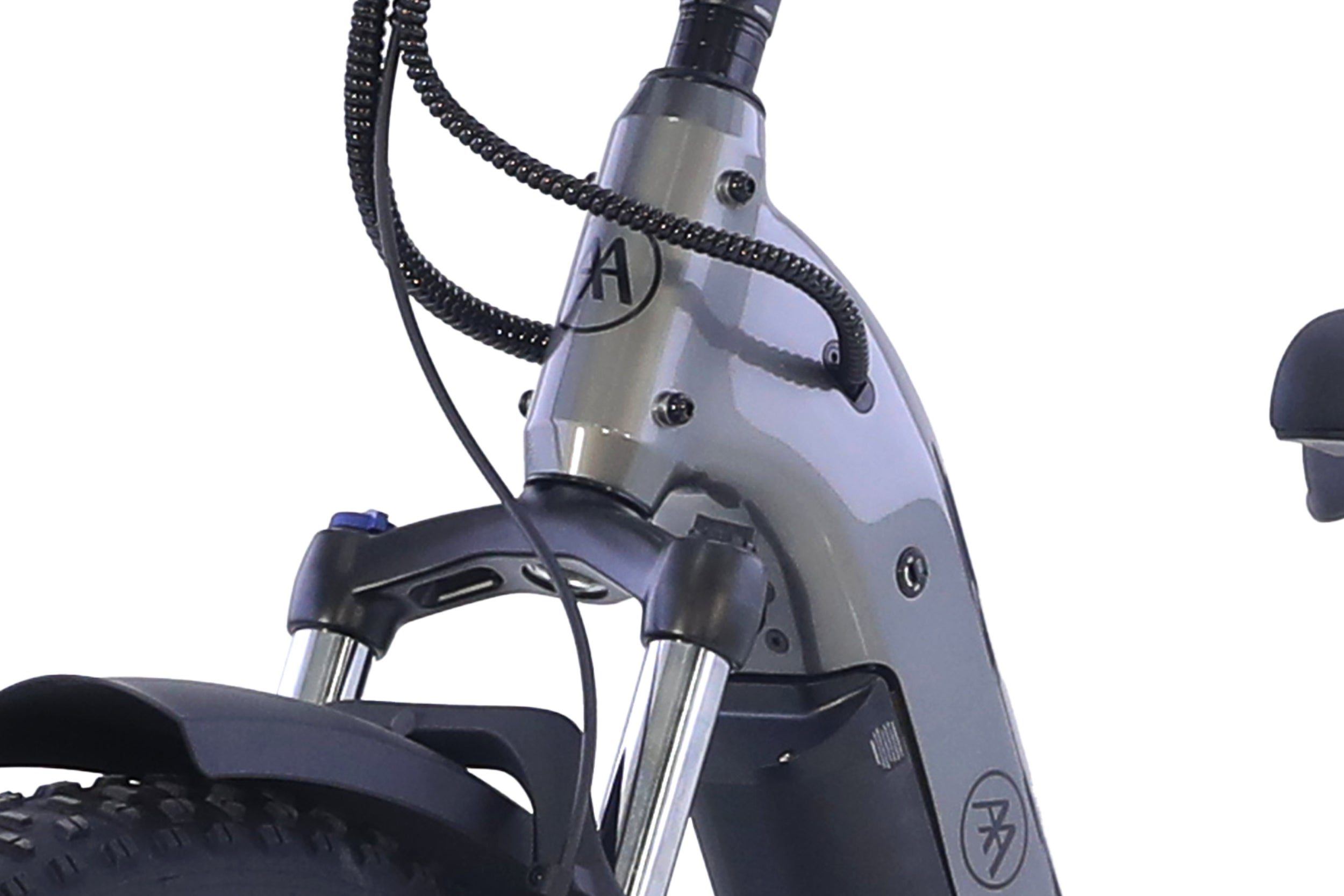

FRAME

6061 Single-Butted Aluminum Alloy Frame

WEIGHT

82lbs

PEDALS

9/16" Alloy Platform

FORK

ZOOM Suspension Fork, 80mm Travel, Adjustable Preload, Lockout

PAYLOAD CAPACITY

400lbs

KICKSTAND

Aluminum Alloy Kickstand

CRANKSET

170mm w/ 52T Chainring

SHIFTER

Shimano 8 Speed

DERAILLEUR

Shimano 8 Speed

CASSETTE

8 Speed, 11-34T

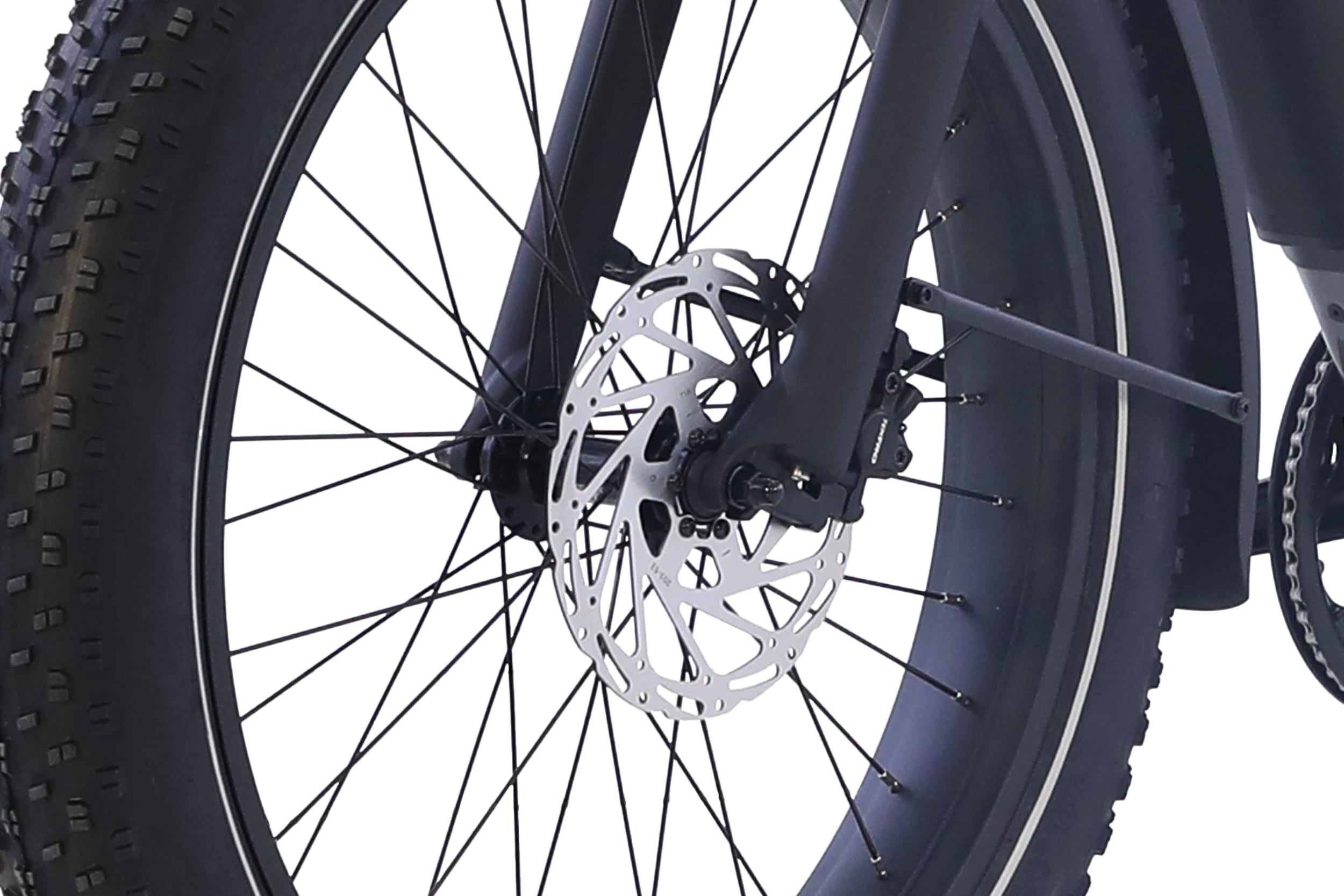

BRAKES

Tektro Hydraulic Disc Brakes, 203 mm Rotors

CHAIN

8 Speed

RIMS

Double Wall Aluminum Alloy

SPOKES

Black Stainless 12G Front / 12G Rear

TUBES

Butyl Rubber

FRONT HUB

Aluminum Alloy Disc

TIRES

26" x 4.0"

SADDLE

AIMA Comfort Saddle

SEATPOST

Aluminum Alloy, 30.9mm 2-Bolt Clamp, 300mm

STEM

Threadless, 31.8mm, 7° Rise, 75mm Length

SEAT CLAMP

34.9mm Quick Release

HANDLEBARS

Aluminum Alloy Double Wall, 31.8mm, 680mm

HEADSET

Sealed Bearing Headset

GRIPS

Ergonomic Comfort

An ebike's battery life is influenced by several factors that can affect its maximum range. While our ebikes can achieve up to 60 miles of range under ideal riding conditions, range can vary from 20 - 60 miles based on many contributing factors.

Here's a list of the most common factors that affect range, as well as what you can do to maximize your riding time.

• Pedal Assist: Higher levels of pedal assist will allow for an easier ride, but will also draw more power from the battery. Lower pedal assist levels are better for getting as many miles as possible out of your battery.


• Average Cruising Speed: Riding slower will decrease the amount of energy you lose to wind resistance as the bike pushes you forward. Slower speeds will extend battery life.


• Tire Pressure: Keeping your tires inflated to the recommended pressure can help increase your range. Maintaining a proper tire pressure not only increases your range, but also helps prevent pinch flats! For most riding situations, checking your tire pressure at least once a week will keep your ride safe and energy-efficient.


• Load Weight: Carrying a heavier load can decrease your range. This includes the total load of both the weight of the rider and any cargo you may be carrying. More weight takes more time and energy to get up to speed, negatively affecting your range. It's best to keep loads light whenever possible if you're looking to extend your range.


• Terrain & Elevation: In general, riding over smooth and flat terrain will give you a longer range. Hills and rough terrain can greatly impact your maximum range, especially on higher assist levels.


• Wind: That's right! The wind can affect your battery range too! Riding into a headwind will decrease your range, but if you're able to catch a tailwind, you'll actually see that you'll gain more range! Be mindful of which way the wind is blowing when you are riding. If you've been riding in a tailwind, turning around will take more energy from the battery to get you home.


• Ambient Temperature: Riding in cold weather will impact the battery's ability to function optimally. A good rule of thumb is, if you're comfortable, then the battery is comfortable too. This also goes for storing the battery too!
